Rendering Traction duty means relentless cyclic loading and harmonic-rich currents. The ZQSC is engineered around that reality: impedance and winding arrangement are coordinated with the rectifier bridge to limit circulating current and harmonic loss, and the thermal design assumes a full day of rush-hour cycling rather than a steady load.
| Model / Series | ZQSC series |
|---|---|
| Rated Capacity | 500 kVA – 8 MVA |
| Voltage Level | 10 kV / 35 kV primary; 590–1180 V secondary |
| Um (IEC 60071-1) | 12/40.5 kV |
| Phase | Three-phase (multi-winding) |
| Cooling Method | ONAN / ONAF |
| Executive Standard | IEC 61378-1 |
Tell us capacity, voltage and quantity — pricing within 12 hours.
WhatsApp Quote Email UsPrefer talking? We are one tap away.
Product name is pre-filled for you.
Rendering
Distribution transformer built to carry 1.5–2× rated load for hours without exceeding insulation limits.
Rendering

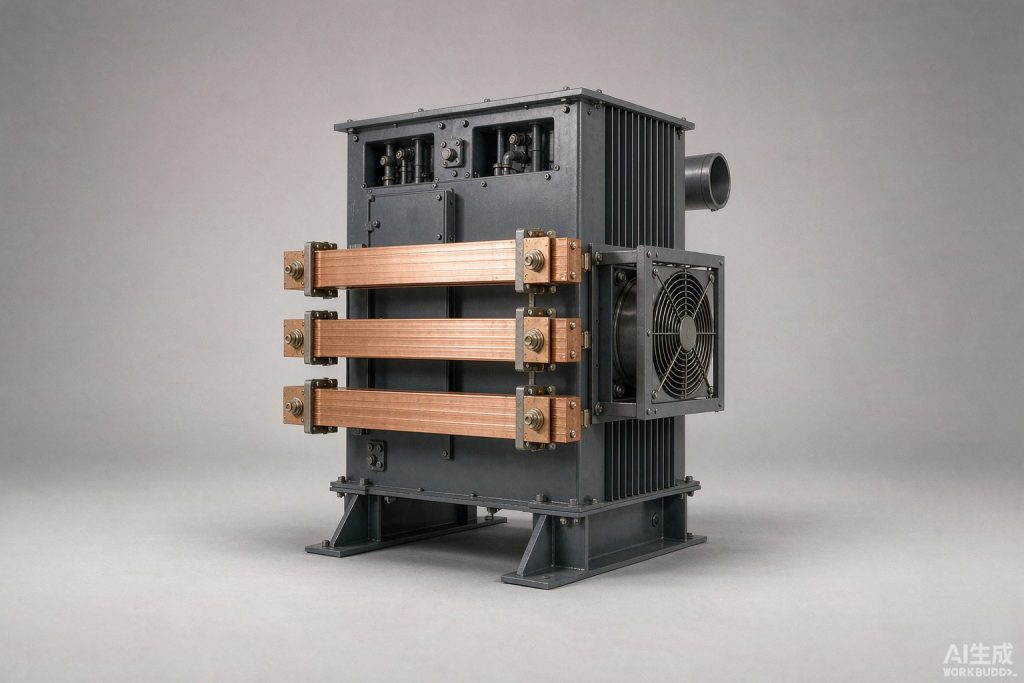

Rectifier transformer for medium-frequency induction melting, 12-pulse configuration.
Rendering
Line-frequency induction furnace transformer with interleaved windings for high current and heavy overload.
