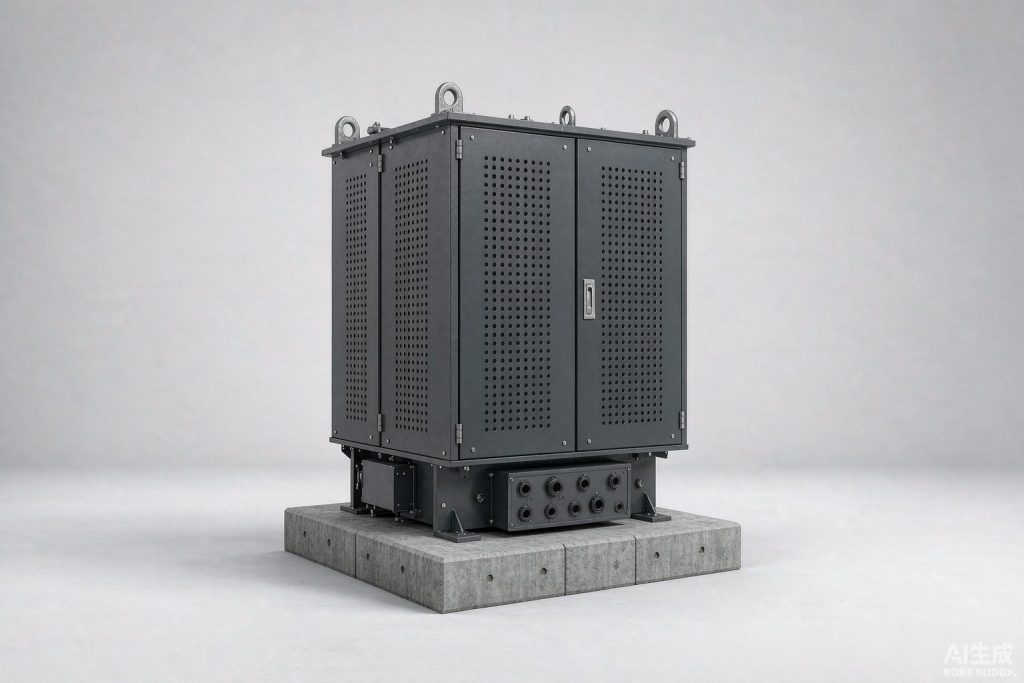

Rendering Not every site is a clean electrical room. The SGB10 uses vacuum-pressure impregnation instead of cast resin, so the windings tolerate humidity, dust and salt-laden air where an epoxy casting would eventually track. Class H insulation allows a 180 °C temperature rise, useful in tunnels, ships and tropical plants.
| Model / Series | SGB10-30~2500/10 |
|---|---|
| Rated Capacity | 30 – 2500 kVA |
| Voltage Level | 10 kV / 0.4 kV |
| Um (IEC 60071-1) | 12 kV |
| Phase | Three-phase |
| Cooling Method | AN / AF |
| Executive Standard | IEC 60076-11 |
Tell us capacity, voltage and quantity — pricing within 12 hours.
WhatsApp Quote Email UsPrefer talking? We are one tap away.
Product name is pre-filled for you.
Rendering

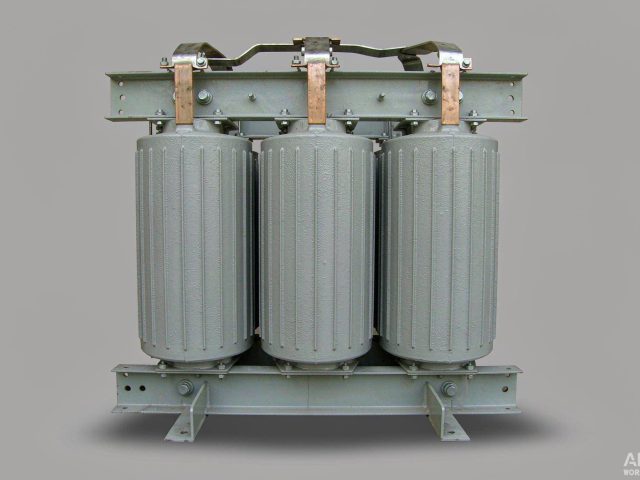

Entry-level cast resin dry-type transformer for indoor distribution where budget leads the specification.
Rendering
Mid-range cast resin transformer with improved loss figures over the SCB10 series.
Rendering
Cast resin transformer with balanced loss performance for commercial and light industrial distribution.
